Introduction

On April 3rd, at N-SIDE Energy, we hosted the second edition of our Energy Connect Event in Brussels. Experts and leaders from Transmission System Operators (TSOs) and Regional Coordination Centers (RCCs) joined us to explore "The Next Frontier of European Integration in Power Markets and Systems", bringing their own experiences and visions to the table.

One of the two topics of the day revolved around the implementation of the Regional Operational Security Coordination (ROSC) across Europe, exploring its impacts and inherent challenges. With perspectives from both TSOs and RCCs, we left the room with a lot of learnings. Read on to discover the key concepts behind ROSC and our key takeaways from the event.

What are we talking about?

To fully grasp ROSC, it is essential first to understand the Coordinated Security Analysis methodology (CSAm).

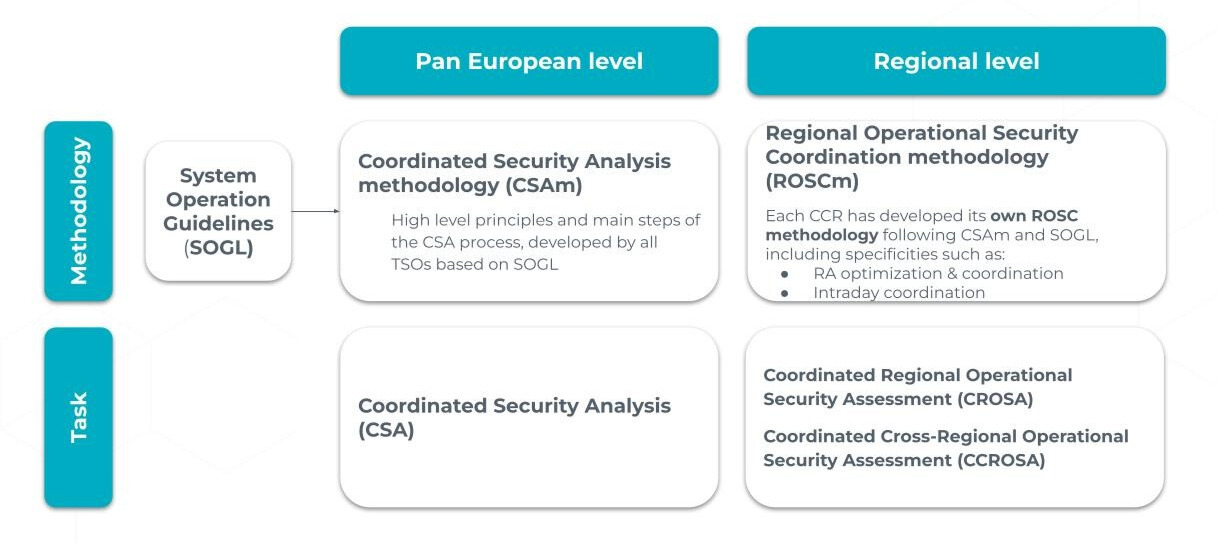

Figure 1 - Differences between ROSC and CSA

This pan-European methodology, developed by all European TSOs in alignment with the System Operations Guidelines (SOGL) and approved by ACER, stipulates the high-level principles and main steps for coordinating operational security analysis across Europe. This involves performing analyses to detect operational security violations on the electricity grid and subsequently proposing coordinated Remedial Actions (RAs) to TSOs aimed at resolving the identified constraints. The CSAm covers two operational timeframes for coordinated security analyses: day-ahead and intraday.

ROSC, on the other hand, stands for Regional Operational Security Coordination and serves as the regional implementation of the pan-European CSAm for the day-ahead and intraday timeframes. A specific methodology (ROSCm) is developed by TSOs for each Capacity Calculation Region (CCR) by the local TSOs/RCCs, following the CSAm and SOGL, but focusing on the regional specificities, such as:

• The conditions and frequency of intraday coordination

• The methodology to prepare the coordinated remedial actions

More practically, ROSC implementations include legally mandated tasks such as the CROSA (Coordinated Regional Operational Security Assessment) and CCROSA (Coordinated Cross-Regional Operational Security Assessment) tasks. These tasks are applied by the Regional Coordination Centers (RCCs).

One practical example?

Coreso, one of the 6 European RCCs, is appointed to perform the CROSA task for:

• The Core CCR (with TSCNet on a rotational basis)

• The Italy-North CCR (with TSCNet on a rotational basis)

• The South-West Europe (SWE) CCR

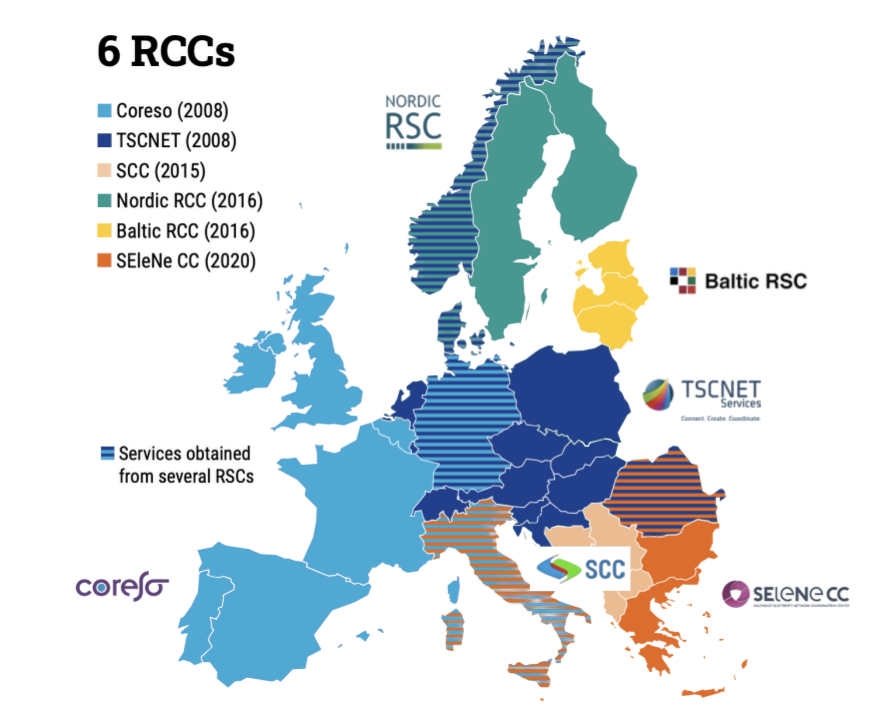

Figure 2 - ENTSO-E. (2024, December 19). ENTSO-E Annual Work Programme 2025.

Figure 3 - ENTSO-E. (n.d.). CCR Map.

In this context, a key initiative is the CorNet Programme, initiated by Coreso and TSCNET, to develop a common platform and tools for the efficient implementation of specific RCC tasks, among which the CROSA.

What does it include?

ROSC includes several sub-tasks and processes, among which:

The provision by TSOs of all required data to their RCCs (list of contingencies, list of remedial actions, operational security limits, etc.) Regional security assessments performed by RCCs. More specifically, the legally mandated CROSA task , performed in day-ahead (2 times) and intraday (minimum 3 times) timeframes on Common Grid Models (CGM), involves: Conducting a security assessment on the CGMs by simulating contingencies to detect potential operational security limit violations. In case of security violations, RCCs recommend to the relevant TSOs the most effective and economical remedial actions and coordinate with them their preparation. Cross-regional security assessments performed by RCCs.In the legally mandated CCROSA task, RCCs coordinate among themselves the Remedial Actions or the security violations which are overlapping across CCRs, and still persisting after the regional CROSA has been finalised. TSOs decide if they implement the recommended Remedial Actions for elements within their control area. If a TSO chooses not to implement a recommended action, they must justify the decision to the RCC.

Why is the ROSC implementation complex, and how to overcome the challenges?

The implementation of ROSC across each CCR is ongoing and is inherently extremely complex, with multifaceted challenges from various domains. Let’s deep-dive into some of the most critical aspects highlighted during the N-SIDE energy connect event.

1. Data standardization

   A Common Grid Model (CGM) constitutes one of the main input data of ROSC. Building CGMs is, however, a complex task that requires collecting, quality checking, and merging individual grid models (IGMs) from all European TSOs. For this purpose, the recent CGMES data format (Common Grid Model Exchange Standard) allows for very precise grid modelling. But the format is also very complex, making the task of merging IGMs even more complex.

   Building CGMs in a qualitative and standard way is, however, a fundamental prerequisite for successful ROSC implementation.

2. Cost sharing

   Solving security violations with Remedial Actions often has a cost, but who should be paying for what? Specifically agreed cost-sharing methodologies must complement ROSC methodologies to address the complex cost-sharing mechanisms related to the Remedial Actions, and ensure fairness among the involved parties.

3. Time and mathematical complexity

   The CROSA has a strict and precise timing defined for its various steps. Ensuring timely completion within the tight operational windows requires both (1) precise coordination among multiple entities and (2) very efficient algorithms. The complex mathematical problem of Remedial Actions Optimization (RAO) when security violations are detected is a good example of these challenges.

   To overcome them, it is imperative to proceed step by step and simplify when possible. Compromises between intuitiveness, efficiency, computation time, and optimality need to be taken and agreed on by the different parties.

4. Open conceptual topics and Impact on processes

   Various processes are strongly tied and interconnected within the energy industry. One of the critical aspects that emerged from the discussions is the influence of topics such as Cross-Zonal Balancing Capacity Markets, which need to be analyzed and considered in the ROSC implementation.

   Effectively managing these complexities requires adapting methodologies, as well as measuring the impacts through dedicated studies.

5. Standardization of TSO processes, Integration, and building confidence

   Over the past decades, TSOs have developed their own philosophies and specific operational practices, which have to be integrated into a single coordinated and trusted approach.

   To help a smooth integration, discussions during the event highlighted that extensive tests and parallel runs are key, while also ensuring enough transparency, explainability, and interpretability in the ROSC results.

Conclusion : ROSC for a resilient European grid

Current operational practices, often relying on legacy systems, have highlighted critical areas for improvement, particularly following past large-scale incidents such as the 2006 blackout, where 15 million European households were disconnected, and with as leading causes being the non-fulfillment of the N-1 criterion in security assessment and insufficient inter-TSO coordination.
The Regional Operational Security Coordination (ROSC), under ongoing implementation across European CCRs, promises to revolutionize grid security. Once fully implemented, ROSC will provide a harmonised and more robust approach to grid security, resulting in several key improvements. Highlights from the N-SIDE energy connect event include:

• Unified security assessments and a common understanding of overload issues, ensuring a single source of truth.
• Clear and Strict timelines for each main step and subprocess.
• Cost-effective remedial actions with fair cost-sharing models.
• Improved TSO Coordination and transparency
• Enhanced grid assessment, including voltage and dynamics studies, providing a more comprehensive picture of grid stability
• Optimised market operations: by ensuring congestion-free grid models, ROSC will provide a better starting point for Intraday Capacity Calculation (IDCC) and Balancing Timeframe Capacity Calculation (BTCC), which currently can be limited by pre-congestions in day-ahead security analysis.

Although implementing ROSC comes with its challenges, its potential for efficient power grid management is enormous. By embracing a step-by-step approach and learning along the way, ROSC promises, once implemented, a more integrated, secure, and resilient electricity grid, unlocking its full potential for a sustainable energy future.
